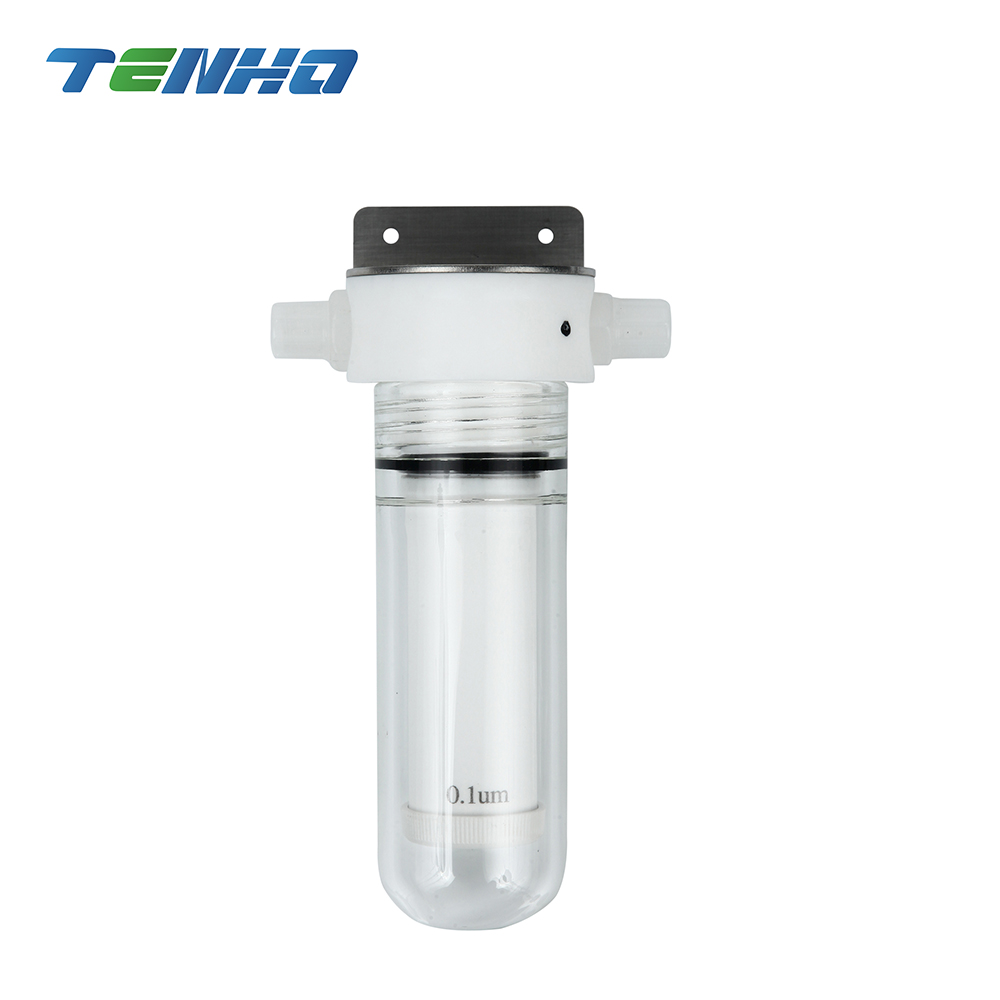

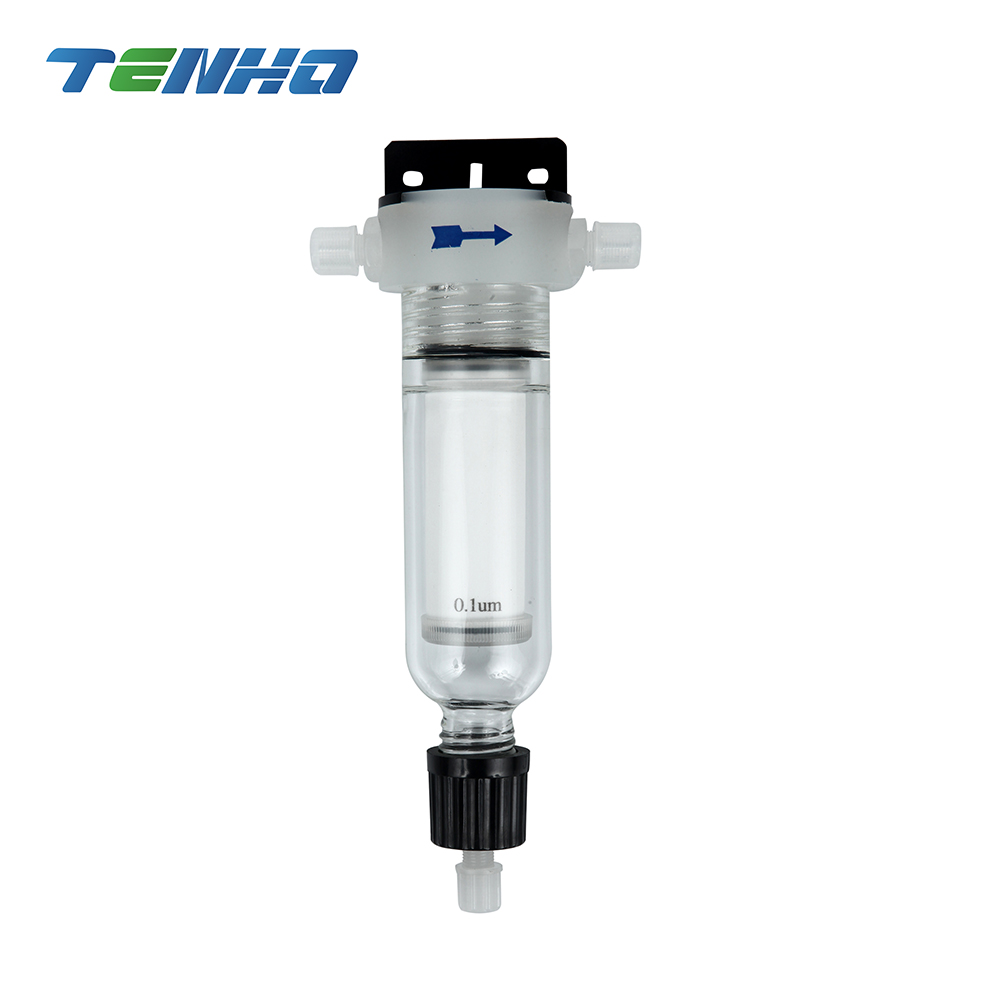

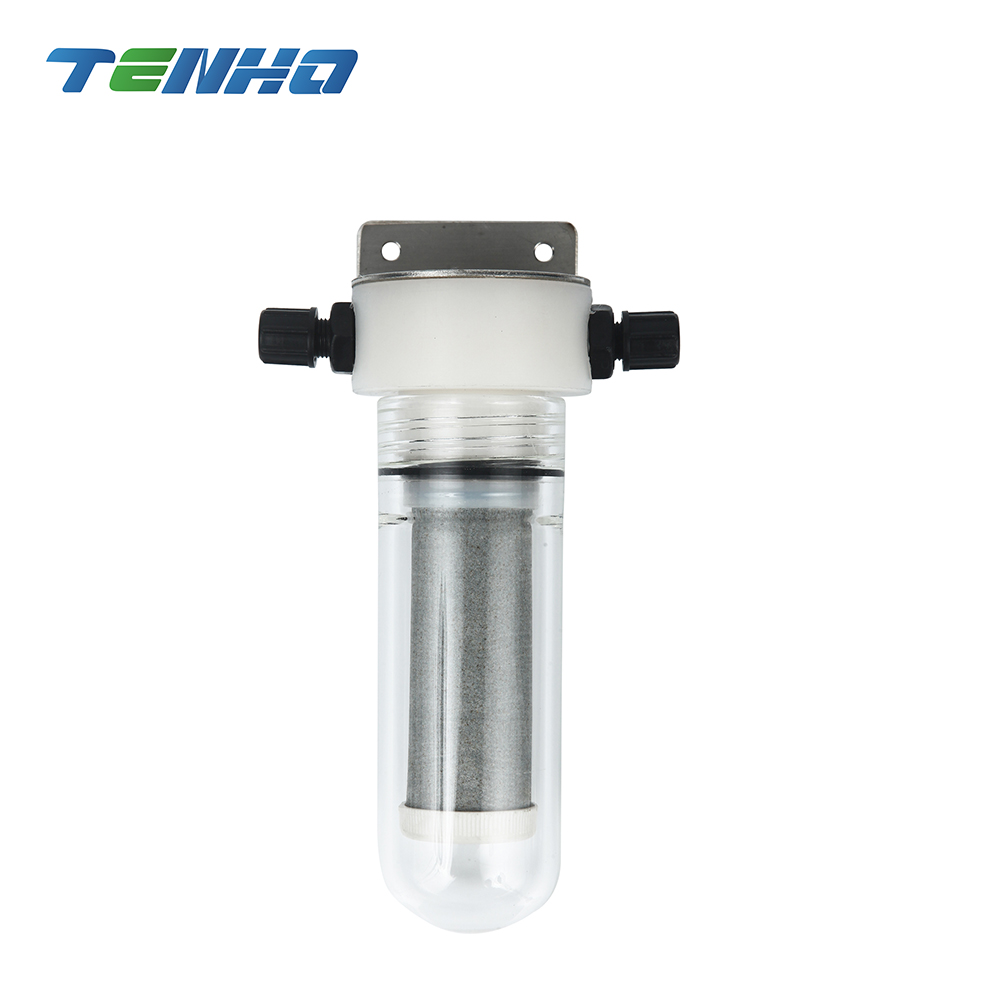

Gas Water Trap with Compensating Connector J-02P0.1G075/J-02P0.1G075

I. Technical characteristics:

•       Special process glass cover is adopted, which is easy to replace and filter

•       The filter core is visible and easy to change and clean

•       Base material: PTFE/PP material optional

It can integrate the humidity alarm function, and effectively protect the analyzer

II. Technical parameter

•        Sampling interface: PTFE G1/4-6mm

•        Operating pressure: 5bar.abs

•        Maximum capacity: 70cm3

•        Filter material: glass fiber,  silicon carbide(optional)

•        Seal type: O type ring

•        Bracket material: aluminum alloy

•        Installation: wall mounted

•        Filtration accuracy: 0.1-2um (optional)

•        Alarm output: DC24V voltage output，It can be equipped with humidity sensor or connecting with peristaltic pump
